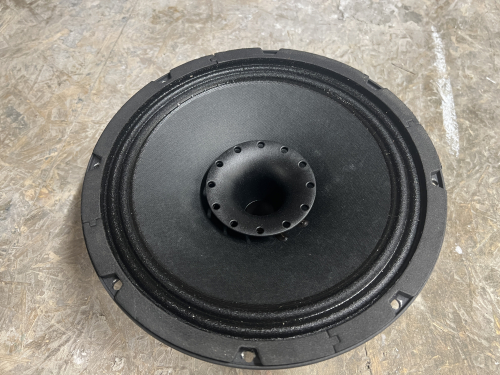

Unbenutzter Sica 12C2CP-8 coaxialer Lautsprecher. Montage eines 1" Hochtontreibers eigener Wahl möglich (mit Sica Adapterplatte). Unbenutzt
| Sica 12C2CP Woofer Z007852 Lautsprecher 12Inch |
| Nominal Diameter |
320 mm / 12 in |
| Net Weight |
3.8 Kg |
| Magnet Weight |
1100 g |
| Nominal Impedance |
8 O |
| Rated Power AES |
200 W |
| Continuos Program Power |
400 W |
| Sensitivity @ 1W/1m |
98.0 dB |
| Voice Coil Diameter |
50 mm (2") |
| Voice Coil Winding Depth |
14 mm |
| Magnetic Gap Depth |
8 mm |
| Flux Density |
1.08 T |
| Magnet Type |
Ferrite |
| Basket Material |
Aluminium Die-Cast |
| Voice Coil Winding Material |
Copper |
| Voice Coil Former Material |
Kapton |
| Cone Material |
Paper |
| Cone Treatment |
No |
| Surround Material |
Treated Cloth |
| Dust Dome Material |
None |
| Overall Diameter |
320 mm |
| Baffle Cutout Diameter |
284 mm |
| Mounting Holes |
8 holes 6×9 on ø 301 mm |
| Total Depth |
130.4 mm |
| Throat Diameter for CD |
25.4 mm |
| Compression Driver Mounting Holes 1 |
4 holes M4 on ø 95 mm |
| Re |
6.2 O |
| Qms |
5.60 |
| Qts |
0.45 |
| Cms |
186 µm/N |
| Vas |
74.3 I |
| X max |
+/- 4.5 mm |
| N |
2.91 % |
| Fs |
58.4 Hz |
| Qes |
0.49 |
| Mms |
40.0 g |
| Bxl |
13.70 Tm |
| Sd |
530.9 cm² |
| X var |
+/- 7.0 mm |
| Le (1KHz) |
0.83 mH |
